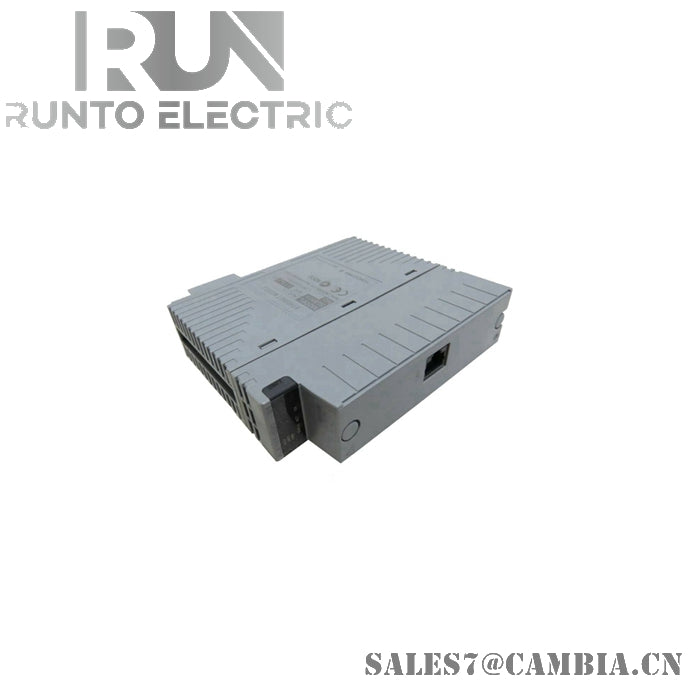

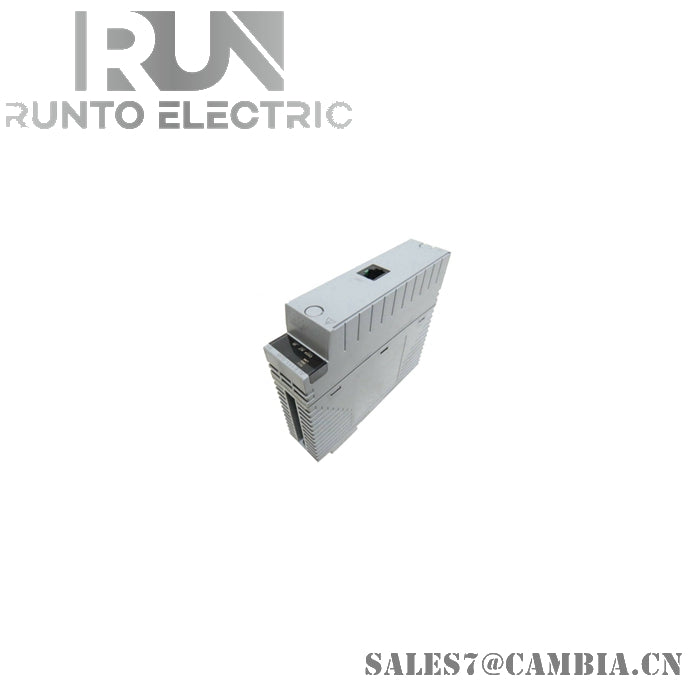

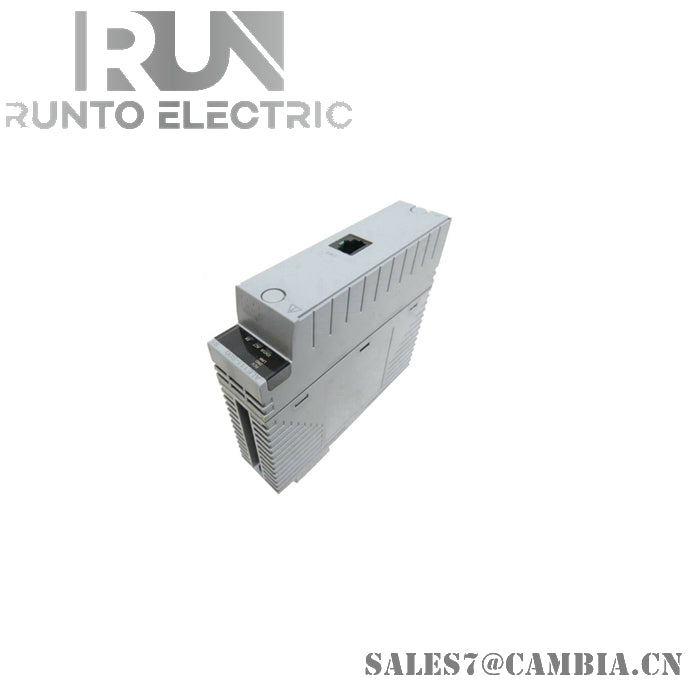

Yokogawa NFCP501-W15 CPU Module

Description

The Yokogawa NFCP501-W15 is a high-performance CPU module designed for the FCN (Field Control Node) system, part of Yokogawa’s STARDOM autonomous controller lineup. It delivers reliable processing power and robust communication capabilities for demanding industrial automation applications, including process control, energy management, and remote monitoring.

Specifications

• Processor: Intel Atom E3815, 1.46 GHz
• Main Memory: 256 MB with ECC
• Static RAM: 2 MB ECC, battery-backed
• Flash Memory: 1 GB onboard
• External Storage: SD card slot (SDHC, 4–32 GB, Class 10)
• Ethernet Ports: 2 × RJ45 (10/100/1000 Mbps)
• Serial Port: 1 × RS-232-C (D-sub 9-pin)
• Control Cycle: Minimum 20 ms
• Power Supply: 24 V DC ±20%, Max 30 W
• Operating Temperature: -40°C to +70°C
• Dimensions: Approx. 22 mm × 124 mm × 126 mm
• Weight: Approx. 0.3 kg

Features

• Supports real-time control with fast processing and ECC-protected memory
• Offers robust communication via dual Ethernet ports and RS-232-C
• Includes SD card support for easy data logging and firmware updates
• Designed for harsh environments, with wide temperature tolerance and natural convection cooling
• Provides diagnostic LEDs and hardware switches for operational visibility and control
• Integrates seamlessly with Yokogawa’s STARDOM and CENTUM VP systems for scalable automation
