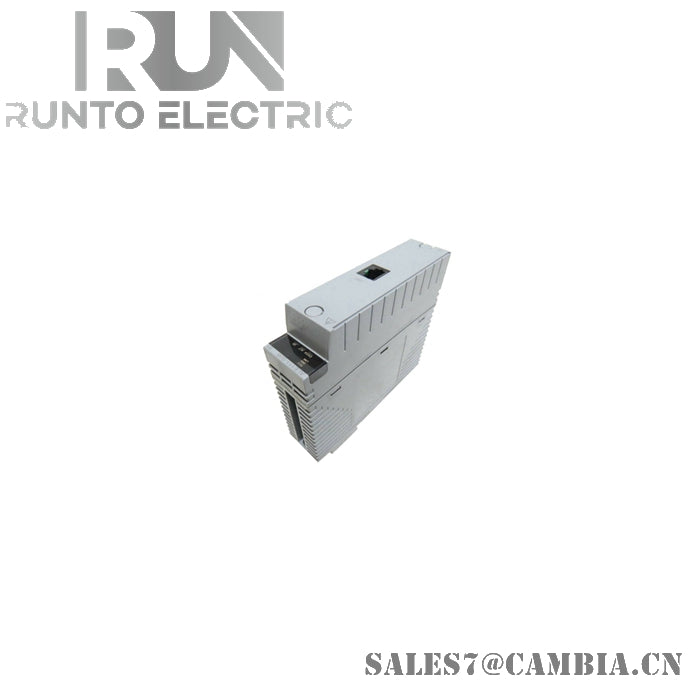

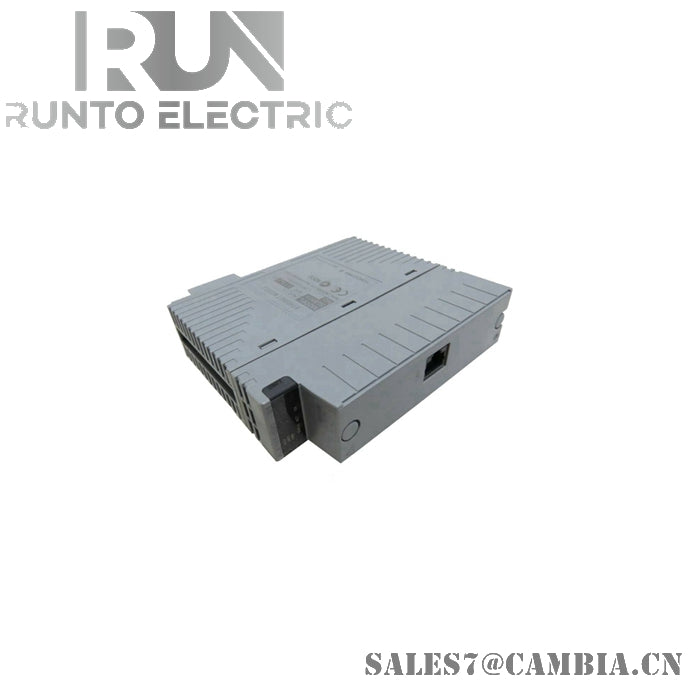

Yokogawa NFDV551-P60 Digital Output Module

Description

The Yokogawa NFDV551-P60 is a digital output module designed for industrial automation applications. It provides 32 output channels, making it suitable for various process control tasks.

Specifications

• Number of Output Channels: 32
• Rated Applied Voltage: 24V DC
• Load Voltage: 24V DC, 50 mA
• Field Power Supply Voltage Range: 20.4 to 26.4V
• Output ON Voltage Maximum Value: 2V DC
• Leak Current Maximum Value When Output OFF: 0.1 mA
• Output Format: Current sink
• Maximum Load Current: 100 mA/channel, 26.4V
• Withstanding Voltage:
  • Between output signal and system: 2000V AC for 1 minute
  • Between commons: 500V AC for 1 minute (common minus side every 16 channels)
• Status Output: ON/OFF status output function
• Output Fallback Options:
  • HOLD: Maintains current states when fallback action is triggered
  • OFF: Resets all output channels to off when fallback action is triggered
  • NO: Performs no fallback action
• Output Response Time: 3 ms or less (for status output)
• Maximum Current Consumption:
  • 700 mA (5V DC)
  • 60 mA (24V DC, field power supply)
• External Connection: Pressure clamp terminal, MIL connector cable
• Mounting: DIN rail mounting
• Dimensions: 90 × 60 × 30 mm
• Weight: 200 g
