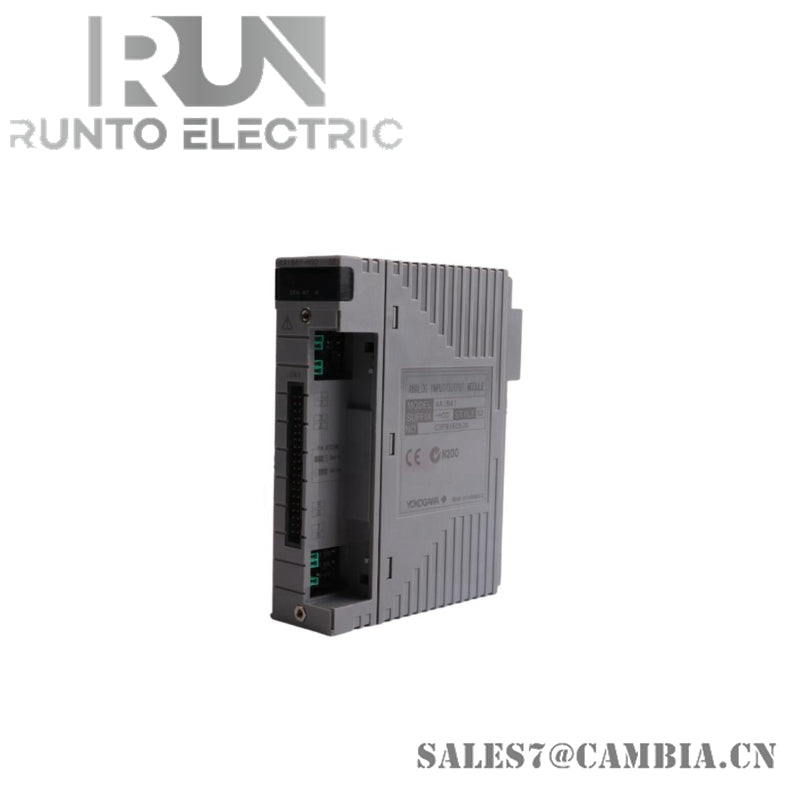

Yokogawa NFTP5S-00 Pressure Clamp Terminal Block

Description

This NFTP5S-00 terminal block facilitates the connection of field wiring to I/O modules, ensuring stable digital signal transmission. It’s engineered for high-reliability environments and supports both input and output channels, making it a versatile interface component.

Specifications

• Type: Pressure Clamp Terminal Block
• Channels: 32-channel digital input/output
• Compatibility: Yokogawa FCN autonomous controllers
• Surge Protection: Available with or without surge absorbers
• Input Range:
  • Thermocouple: -270 to 1820°C
  • RTD: -200 to 850°C
• Accuracy: ±0.1% of reading or ±0.25°C (whichever is greater)
• Output Signal: 4–20 mA DC linear with temperature
• Power Supply: 10.5 to 45 V DC
• Ambient Temperature:
  • Operating: -40 to 85°C
  • Storage: -50 to 100°C
• Response Time: ≤250 ms (90% response)
• Load Resistance: Max 600 Ω at 24 V DC
• Stability: ±0.1% of span per 12 months
• Weight: Approx. 0.3 kg
• Protection Rating: IP66/IP67 (depending on housing)

Key Features

• Secure pressure clamp terminals for vibration-resistant connections
• High channel density for compact installations
• Wide temperature and voltage tolerance for harsh environments
• Surge protection options to enhance system stability
• Flexible signal support, including thermocouple and RTD inputs
• Compact and rugged design for field deployment
